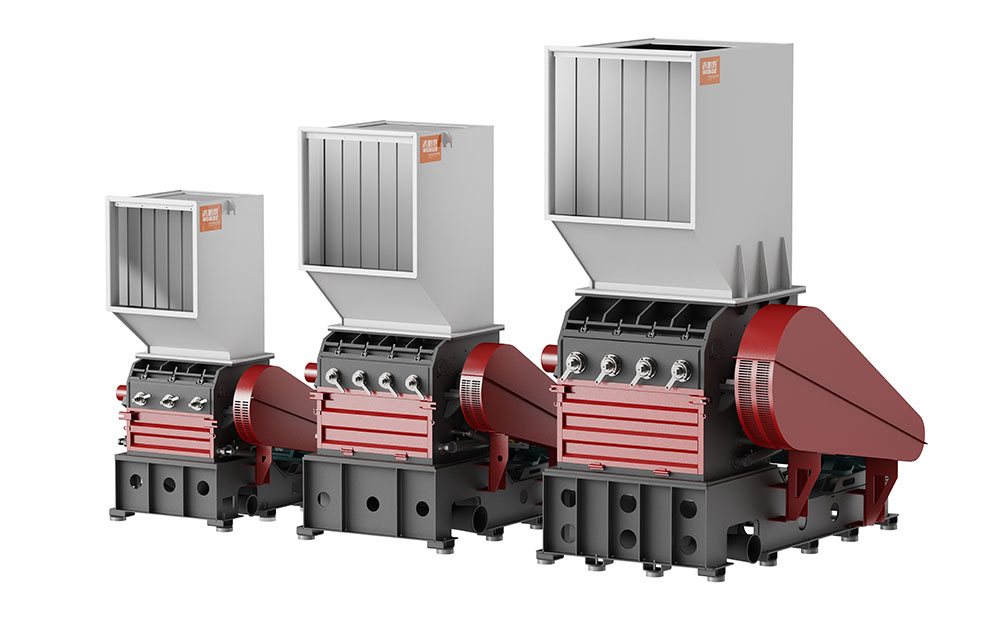

PET Bottle Crusher Machine WHC600/350

1.WHC series heavy-duty crushers are widely used in various of plastic products, such as PE, PP, PVC, PET, Rubber, ABS, PC, waste material...

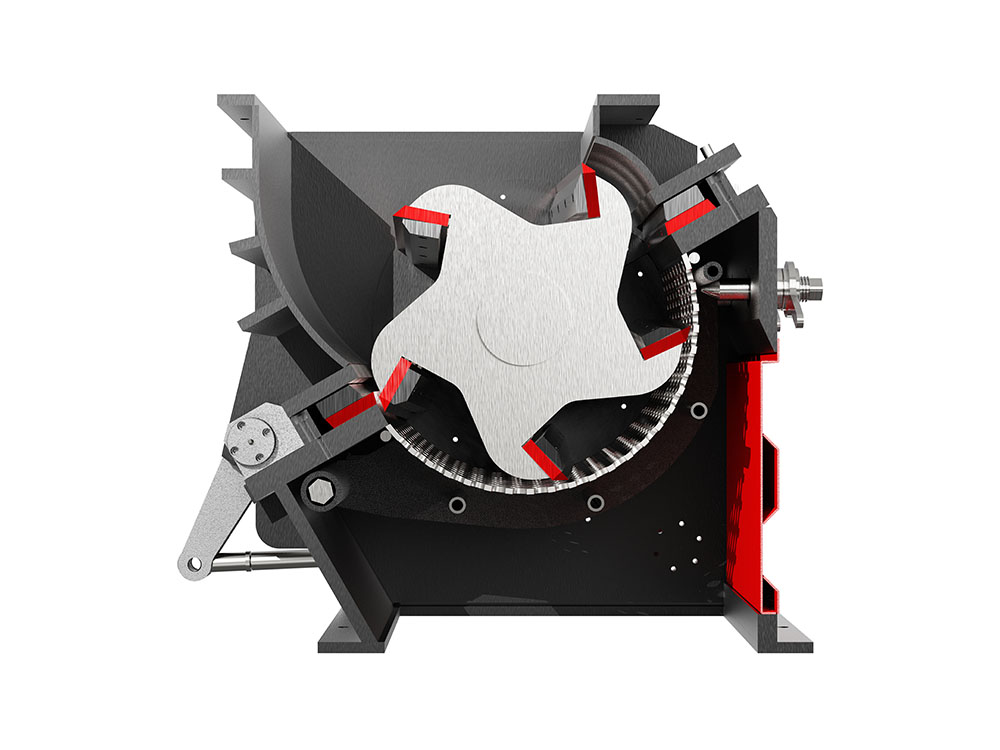

2.Spindle rotor can be customized according to different applications, unique crushing chamber structure and feeding hopper form can recycle waste plastic into fine particles.
3.It use for various recycling production lines and with shredder,washing and pelletizing lines to meet customers recycling needs.
4.Capacity：300-600 kg/h

QUOTE NOW

PRODUCT DESCRIPTION

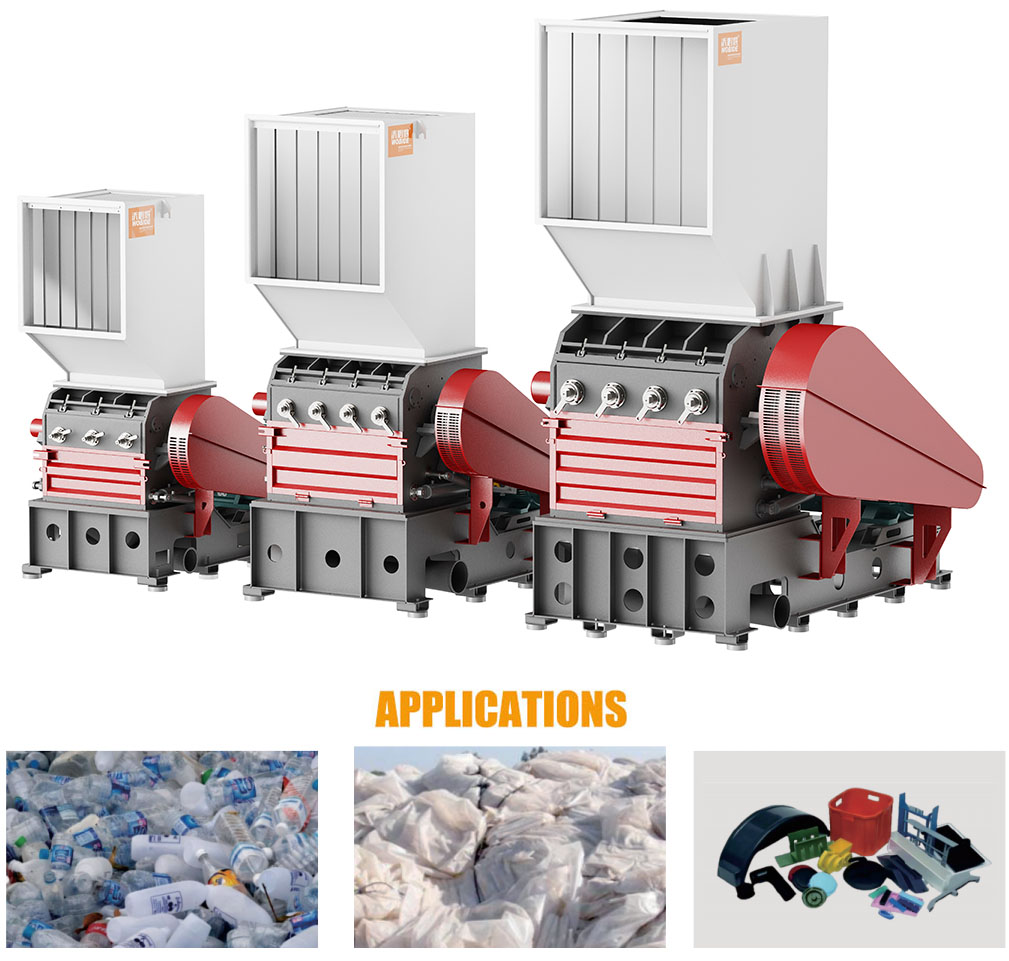

Application:

Large household appliance shells
Automobile bumpers
Injection product
Plastic pallet
Hollow plastic containers

Feature:

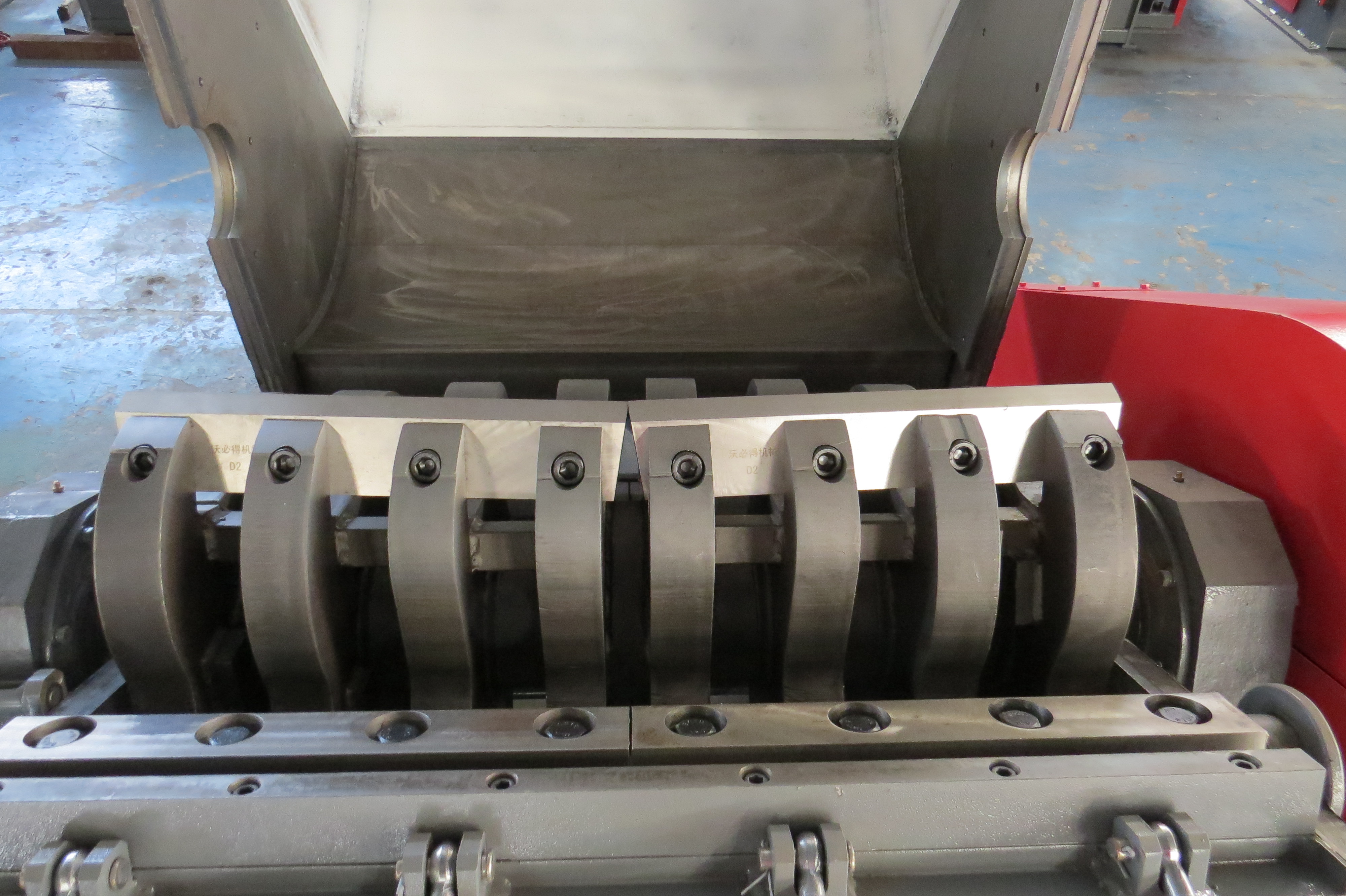

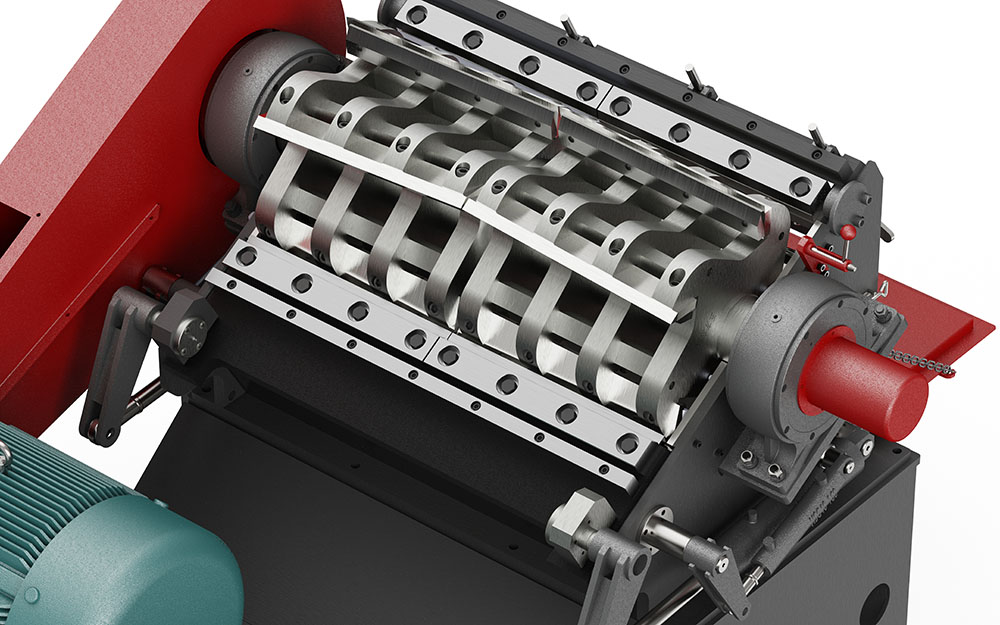

	1. Customized Main Shaft The main shaft adopts high-strength welded steel structure with a unique V-shaped design. All main shafts have passed strict dynamic and static balance tests to ensure the reliability of machine operation.

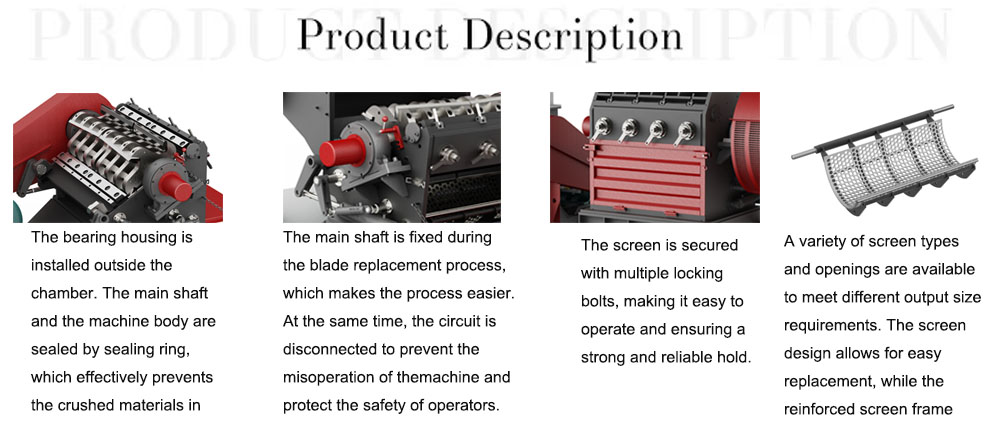

2. External bearing seat. Main shaft and the machine body are sealed by a sealing ring, which effectively prevents the shredded materials from entering the bearing, to prolonging the life of the bearing.
	3.Hydraulic opening system. The upper and lower cabinet and the screen bracket are hydraulically controlled, which is convenient for machine maintenance and the replacement of blades and screens.
4.Protection device while replacing blade. The mainshaft is fixed during the blade replacement process, which makes the blade replacement easier. At the same time, the circuit is disconnected to prevent the misoperation of the machine and protect the safety of operators.

Product specifications:

Model/Parameter	WHC600/350	WHC600/450	WHC800/450	WHC800/600	WHC1000/600	WHC1200/600	WHC1400/800	WHC1600/800
Main Shaft Length(mm)	600	600	800	800	1000	1200	1400	1600
Main Shaft Tactical Diameter(mm)	350	450	450	600	600	600	800	800
Main Shaft Speed(rpm)	580	580	580	520	520	520	480	480
Rotor Blades(PCS）	2x3	2x3	2x3	2x5/2x7	2x5/2x7	2x5/2x7	2x7	2x7
Fixed Blades(PCS）	2	2	4	4	4	4	4	4
Power(KW）	22	30	37	55	55/75	75/90	132/160	160
Hydraulic Power(KW)		1.1	1.5	1.5	1.5	1.5	3	3
Screen Mesh Diameter(mm）	10-50	10-50	10-50	10-50	10-50	10-50	12-50	12-50
Inlet Size(mm）	450x600	530x600	530x800	705x800	800x1000	850x1200	1400x1400	1600x1600
Dimension(LWH）(mm）	1650x1370x1950	2000x1550x2550	2000x1750x3150	2100x1750x3200	2300x1950x3350	2300x2150x3350	3500x2500x5000	3860x2650x5380
Weight(kg）	1800	2600	3100	3500	4500	5500	12000	14000
