Large Plastic Crusher WBC1000/600

1.WBC series plastic barrel & case crusher is specially designed for recycling various vacuum plastic containers.
2.With special spindle and the feeding hopper type, increases the size of the crushing chamber, it does not need shredder,crush the material to the required size once.
3.Thereby reducing the recycling process, reducing the cost, and improving the efficiency of recycling.

QUOTE NOW

PRODUCT DESCRIPTION

Application:

Plastic water bucket & tank
Grease drum
Chemical blue barrel
Plastic case
Storage basket
Refrigerator inner tank

Feature:

	1. Customized Main Shaft The main shaft adopts high-strength welded steel structure with a unique V-shaped design. All main shafts have passed strict dynamic and static balance tests to ensure the reliability of machine operation.
2. External bearing seat. Main shaft and the machine body are sealed by a sealing ring, which effectively prevents the shredded materials from entering the bearing, to prolonging the life of the bearing.
	3.Hydraulic opening system. The upper and lower cabinet and the screen bracket are hydraulically controlled, which is convenient for machine maintenance and the replacement of blades and screens.

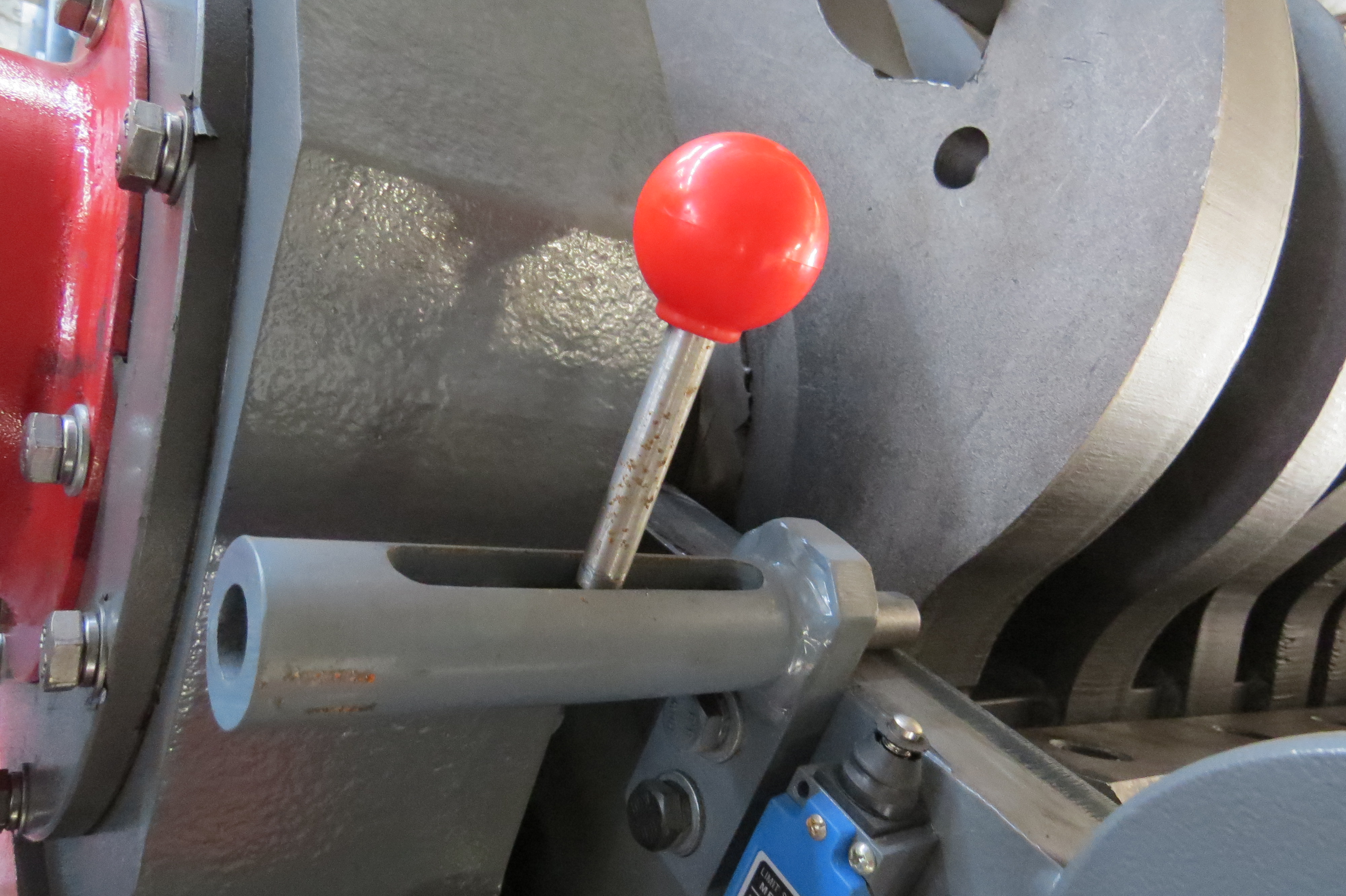

4.Protection device while replacing blade. The mainshaft is fixed during the blade replacement process, which makes the blade replacement easier. At the same time, the circuit is disconnected to prevent the misoperation of the machine and protect the safety of operators.
	5.Large crushing chamber suitable for big size material.

Product specification:

Model/Parameter	WBC800/600	WBC1000/600
Main Shaft Length(mm)	800	1000
Main Shaft Tactical Diameter(mm)	600	600
Main Shaft Speed(rpm)	520	520
Rotor Blades(PCS）	25/27	25/27
Fixed Blades(PCS）	4	4
Power(KW）	45/55	55/75
Hydraulic Power(KW)	1.5	1.5
Screen Mesh Diameter(mm）	10-50	10-50
Inlet Size(mm）	705*800	705*1000
Dimension(LWH）(mm）	210017503200	230019503350
Weight(kg）	3500	4500
