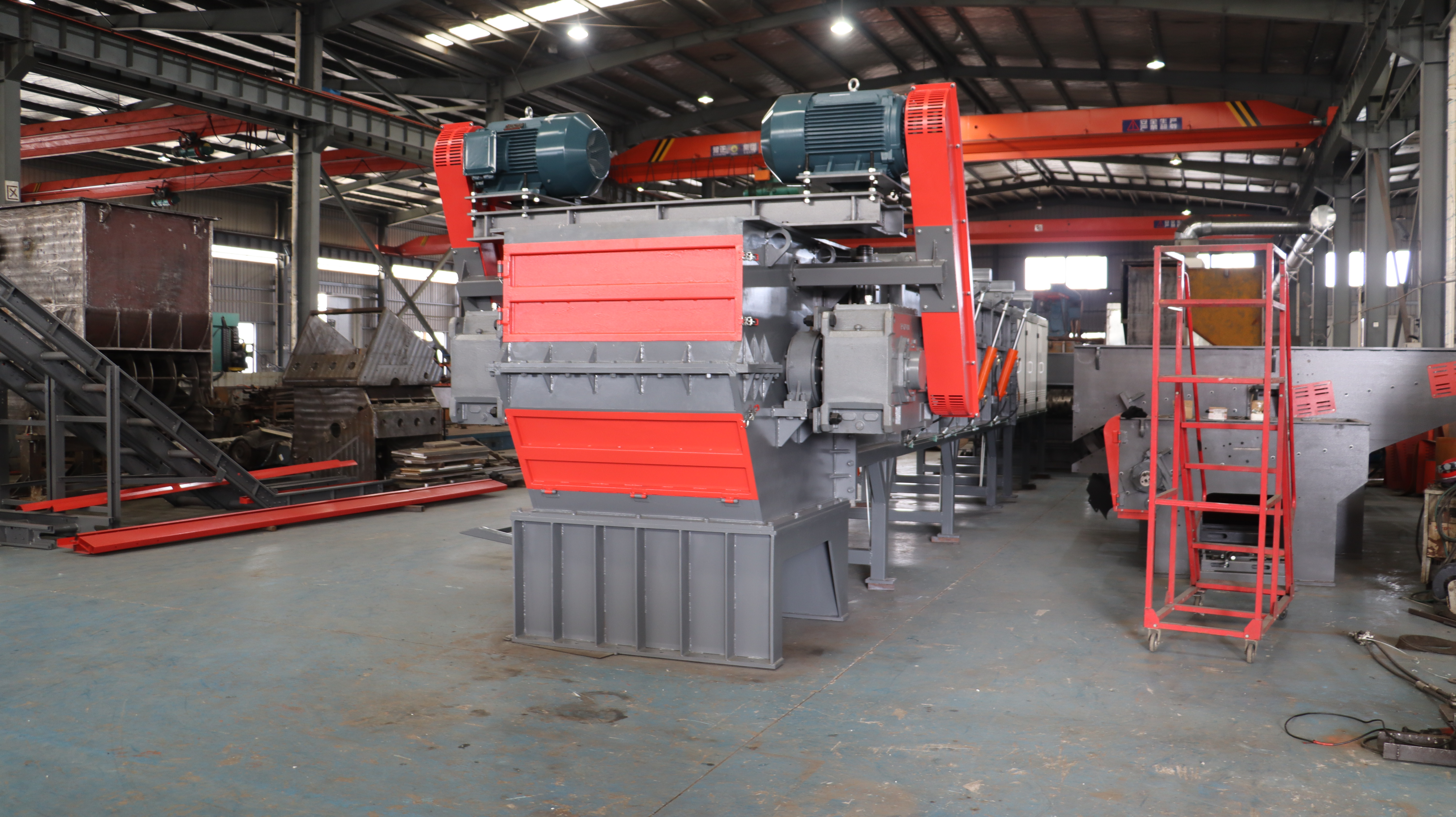

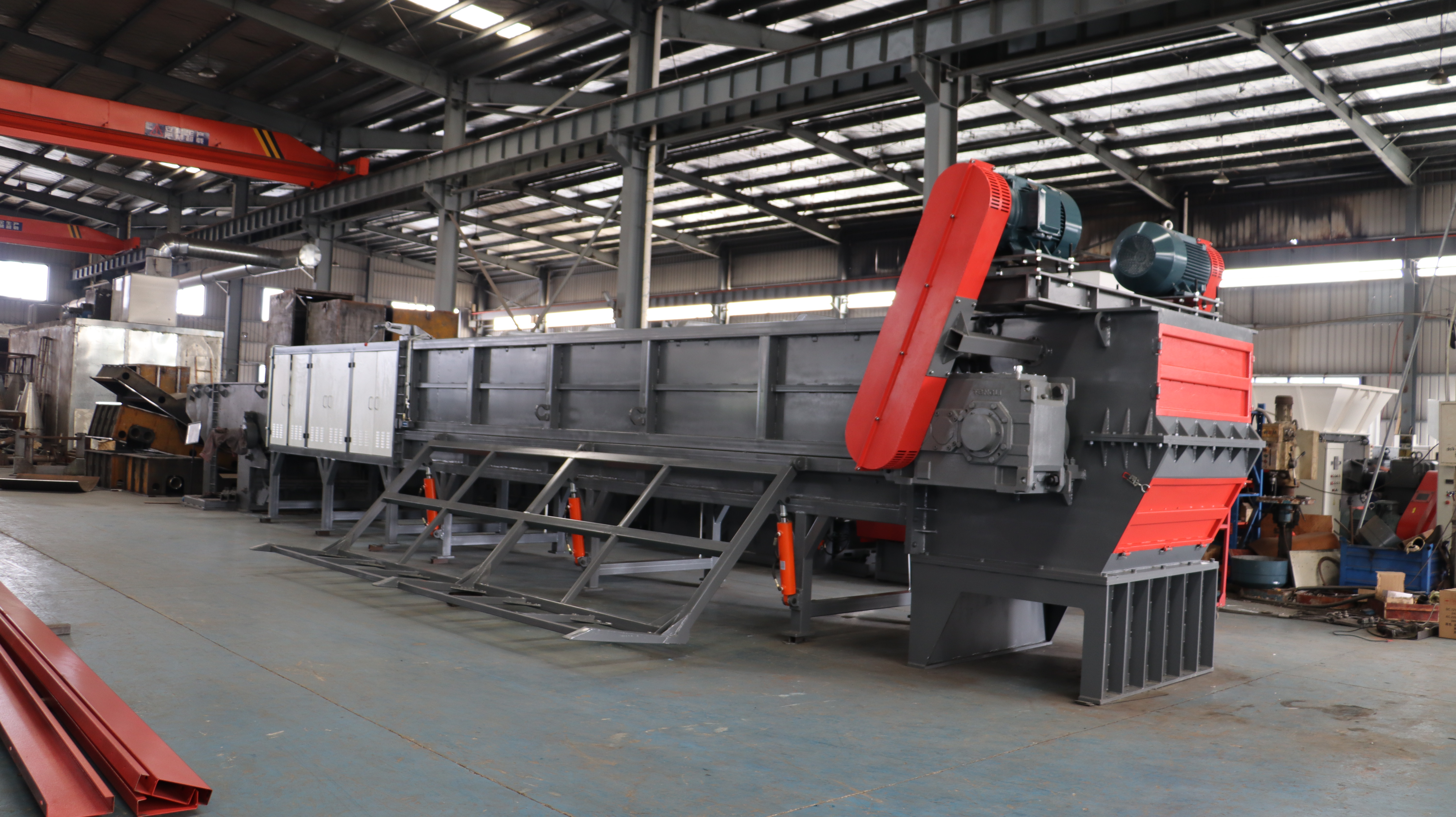

High Caliber Large Diameter Plastic PE PP PVC HDPE Solid Wall 6M Pipe Shredder Machine

High Caliber Large Diameter Plastic PE PP PVC HDPE Solid Wall 6M Pipe Shredder Machine

Pipe shredder for high-caliber large-diameter plastic PE, PP, PVC, HDPE solid wall pipe, bundles of small pipes and materials, developed special shredders. This model has a unique design of the level of horizontal feeding in the box, not the length of pipe restrictions. According to the maximum length of the customer pipe to determine the machine model.

Can also be used in accordance with the material requirements with plastic crusher, milling machine, composed of a complete set of plastic refining production line. High efficiency, simple and safe operation.

QUOTE NOW
  • High Caliber Large Diameter Plastic PE PP PVC HDPE Solid Wall 6M Pipe Shredder Machine details
  • High Caliber Large Diameter Plastic PE PP PVC HDPE Solid Wall 6M Pipe Shredder Machine details
  • High Caliber Large Diameter Plastic PE PP PVC HDPE Solid Wall 6M Pipe Shredder Machine details
  • High Caliber Large Diameter Plastic PE PP PVC HDPE Solid Wall 6M Pipe Shredder Machine details

PRODUCT DESCRIPTION

Application:

PE PP PVC HDPE Pipe

Features:

  • 1.Dual drive. With hardened double reduction gear, powerful, efficient shredding capacity. Large ultra-thick pipe can also be equipped with hydraulic couplers to prevent overload damage to the spindle rotor and motor.

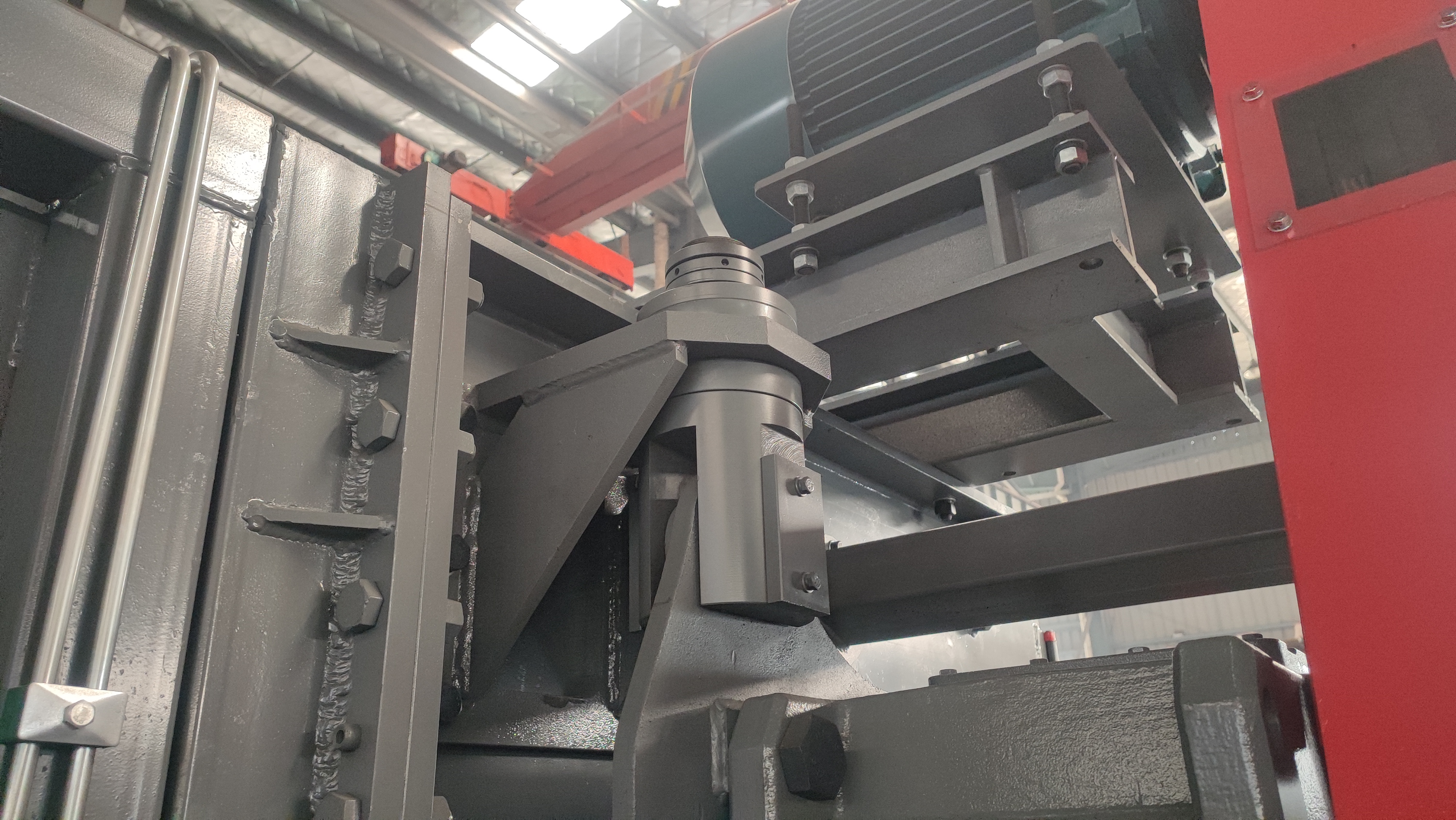

  • 2. Shock absorber. Use of aviation shock absorber spring to reduce the vibration during shredding so that the shredder can shred the material in smoothly, reduce noise and enhance the life of the reducer.

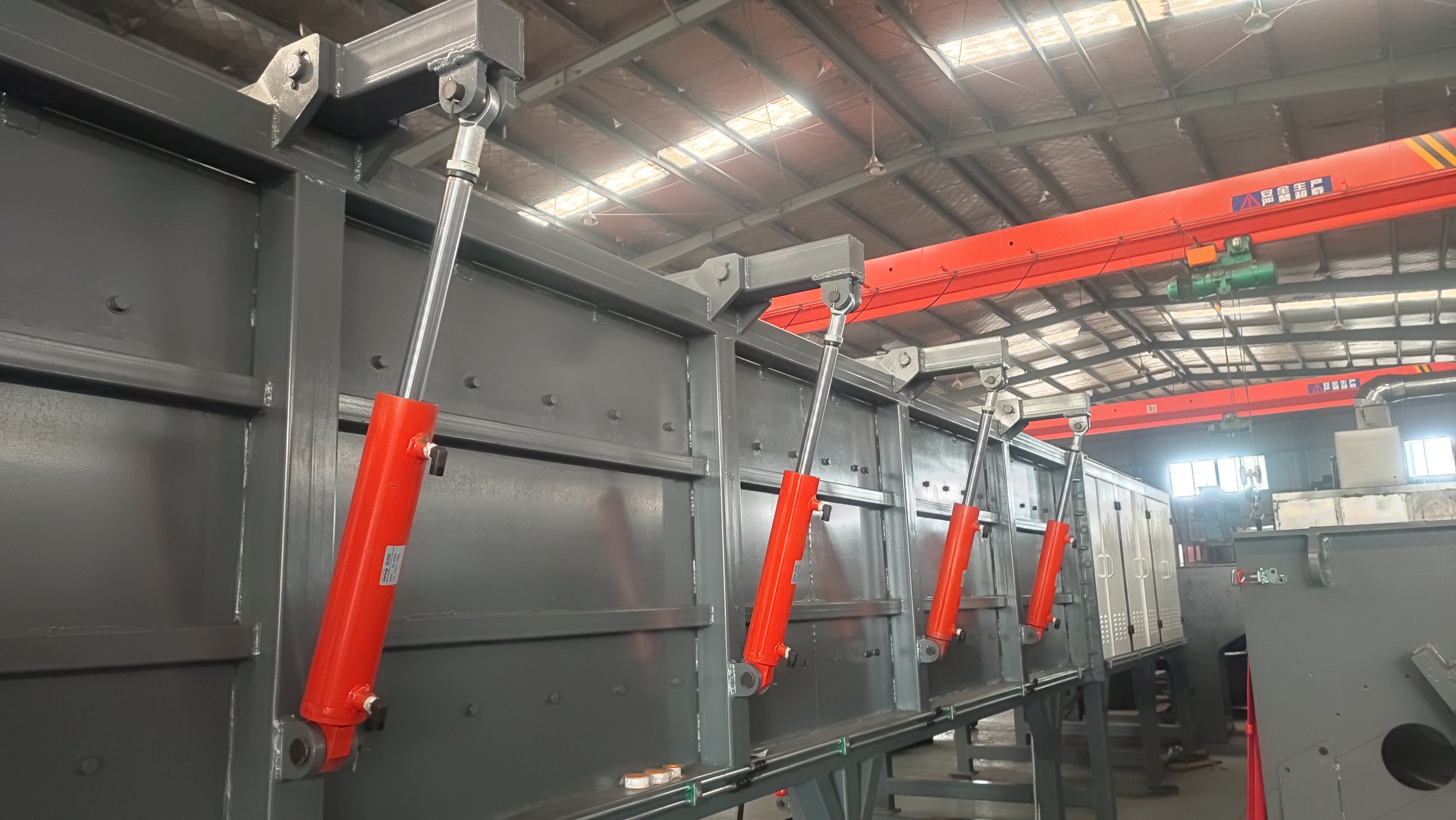

  • 3. Feeding box. Automatic opening and closing by hydraulic press, to provide fast feeding, saving feeding time, improve shredding capacity.

Product specification:

Model
WPG800
WPG1000
WPG1200
WPG1400
Main Shaft Length(mm)
800
1000
1200
1400
Main Shaft Tactical Diameter(mm)
850
1050
1250
1450
Main Shaft Speed(rpm)
40
36
36
18
Ram Travel(mm)
6500
6500
6500
6500
Rotor Blades(pcs)
57
105
135
160
Fixed Blades(pcs)
2
3
4
5
Motor Power(kw)
2*37
2*45
2*55
2*75
Hydraulic Power(kw)
11
15
18.5
22
Screen Mesh Diameter(mm)
50
50
50
50
Cutting Chamber Dimension(mm)
850*700
1050*700
1250*700
1450*700
Overall Dimension(L*W*H)(mm)
11300*3700*3400
11500*3900*3600
12000*4100*3800
12200*4300*4000
Weight(kg)
11000
14000
17000
21000

Wobide Machinery Co., Ltd is professional High Caliber Large Diameter Plastic PE PP PVC HDPE Solid Wall 6M Pipe Shredder Machine suppliers and China High Caliber Large Diameter Plastic PE PP PVC HDPE Solid Wall 6M Pipe Shredder Machine factory, these equipment is being used in many application. View application or details above or inquiry more. We also OEM/ODM High Caliber Large Diameter Plastic PE PP PVC HDPE Solid Wall 6M Pipe Shredder Machine. You can find tech details and ask price at Wobide Machinery Co., Ltd.
